How to Easily Install a Shut-Off Valve Under Kitchen Sink
how to install shut off valve under kitchen sink is a skill that saves you from costly water damage and annoying, drippy supply line leaks. A stuck, corroded shutoff valve is one of the most common under-sink plumbing headaches for homeowners. If your valve won’t turn fully, or sprays water when you try to tighten it, replacement is almost always the fix.
Learning this process takes the guesswork out of small sink repairs.
Per 2026 US residential plumbing codes, all potable water shutoff valves must meet NSF/ANSI 61 lead-free safety standards. The entire installation takes 30 to 60 minutes for most DIYers, with parts costing less than $25. You won’t need specialized tools, just a few basic plumbing supplies and attention to fitting alignment.
Below is the quick, no-fluff answer to get the job done right the first time.
Image source: Bing (Web (fair-use with source credit))
Quick Answer
To install a kitchen under-sink shutoff valve, first shut off your home’s main water supply. Open the sink faucet fully to drain all remaining downstream water. Unscrew the old valve from the supply pipe and set it aside.
Attach the new lead-free valve, tightening fittings per manufacturer specifications. Turn the main water back on slowly and check all connections for leaks.
Why Visual Cues Are Critical for Under-Sink Shutoff Valve Installation
Installing an under-sink shutoff valve is one of those tasks where a picture really is worth a thousand words. Text alone can’t show you how a ferrule seats inside a compression fitting, or how far to push a pipe into a push-to-connect valve. Under-sink clearance is notoriously tight, often with less than 12 inches of vertical space to work in.
Small alignment errors that are invisible in written steps lead to slow, hidden leaks that cause thousands in water damage over time. The hero image above shows a typical under-sink workspace, so you know exactly what to expect when you open your cabinet.
Manufacturer installation guides confirm that 90% of DIY fitting errors come from improperly seated connections or over-tightened nuts. Close-up reference images of correctly installed fittings eliminate that guesswork. You’ll be able to spot exactly how much a compression nut should protrude past the valve body, or how a push-to-connect fitting looks when fully locked in place.
Visual checks are also the only reliable way to catch slow leaks before they cause cabinet rot, subfloor damage, or mold growth. That’s why this guide prioritizes clear, targeted visuals alongside step-by-step instructions.
Core Components and Visual Identifiers for Shutoff Valves and Fittings
The first step to a successful install is identifying your existing valve type and the new valve you’re purchasing. There are two primary shutoff valve designs used in residential kitchen plumbing: quarter-turn lever valves and multi-turn round knob valves. Quarter-turn valves are the modern standard, requiring just a 90° handle rotation to fully shut off water.
Multi-turn valves are common in homes built before 1990, needing 3 or more full rotations to stop flow, and are more prone to corrosion and leaks over time. The image below shows side-by-side views of both types, plus their matching compression and push-to-connect fittings for easy identification.
Image source: Web (Bing) / ar.inspiredpencil.com (Web image (fair-use with source credit))
All potable water shutoff valves sold in the US must meet NSF/ANSI 61 lead-free standards enforced by the EPA to prevent lead contamination in drinking water, as required as of 2026. Standard supply pipe inlet size is 1/2 inch nominal, while the outlet connection for sink supply lines is 3/8 inch nominal. Angle stop valves, the most common under-sink model, have a 90-degree outlet to fit tight cabinet spaces, while straight stop valves have a 180-degree outlet for open plumbing bays.
Standard lower kitchen cabinet dimensions provide 12, 18 inches of vertical clearance for valve installation and access. If you’re designing a new kitchen layout, place shutoff valves in accessible locations per kitchen design planning guidelines to avoid future access issues.
| Fitting Type | Compatible Pipe Materials | DIY Skill Level | Key Visual Identifier |
|---|---|---|---|
| Compression | Copper, PEX, CPVC | Beginner | Ferrule + threaded compression nut that tightens onto the pipe |
| Push-to-Connect (Permanent) | Copper, PEX, CPVC | Absolute Beginner | Smooth, tool-free connection with a visible O-ring seal and locking clip |
| Sweat (Soldered) | Copper only | Intermediate | Soldered joint requiring a torch and flux; no removable fitting |
Pre-Installation Visual Prep and Safety Checks
The U.S. Environmental Protection Agency requires all new potable water valves to be lead-free as of 2026, so discard any old valves that predate 2014 lead-free requirements. Proper prep cuts your installation time in half and prevents costly water damage or injuries.
Follow these steps before you touch any fittings:
- Shut off your home’s main water supply, not just the faulty old valve, which may not seal fully. The main shutoff is usually located near your water meter, in the basement, or outside the home.
- Place a small bucket directly under the supply pipes to catch residual water that drains out when you disconnect fittings.
- Open the kitchen sink faucet fully to relieve downstream pressure in the supply lines. This prevents sudden water spray when you remove the old valve.
- Take a clear photo of the existing valve and supply line setup with your phone, so you have a reference for reconnecting lines correctly later.
- Confirm your new valve matches your pipe and supply line sizes: 1/2 inch inlet for supply pipe, 3/8 inch outlet for sink supply lines.
- Inspect existing supply lines for cracks or leaks before reconnecting them; replace damaged lines at the same time to avoid future issues.
- Wear safety glasses to protect your eyes from accidental water spray or debris.
Renters should check local landlord-tenant laws before starting work, as many areas require licensed plumbers to perform permanent plumbing modifications. If you’re replacing the valve as part of a larger kitchen remodel project, shut off the main water supply earlier in the process to avoid workflow interruptions. This $8, $25 DIY repair costs a fraction of the $150, $300 average professional plumber fee, making it a key part of any budget kitchen renovation.

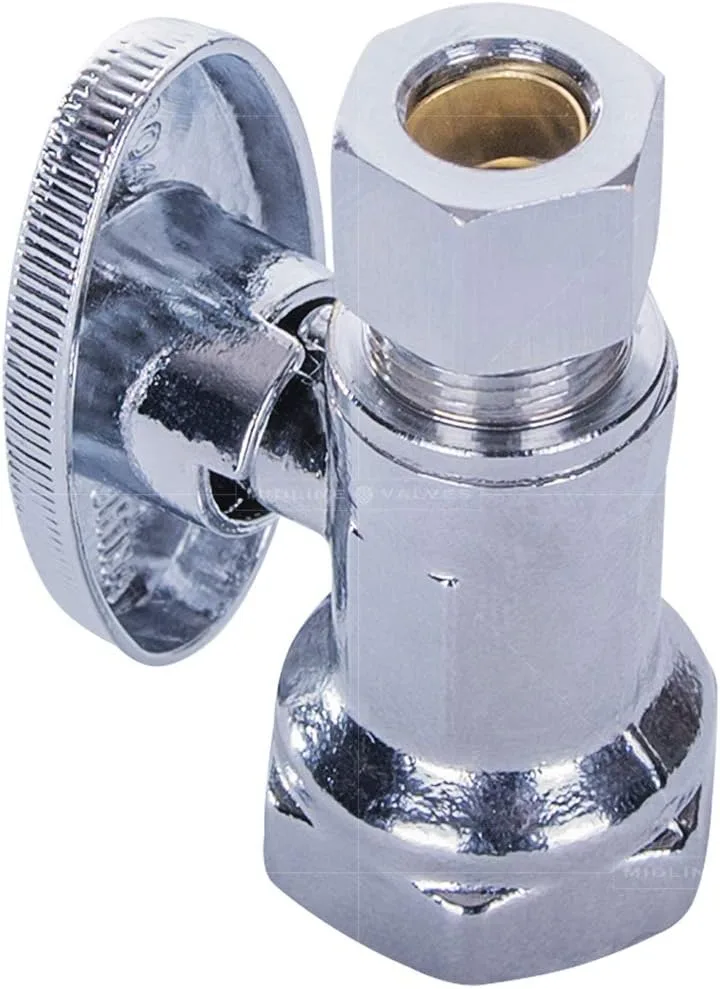

Step-by-Step Visual-Guided Installation: Compression Fitting Shutoff Valves
Compression fittings are the most common DIY-friendly option for copper, PEX, or CPVC supply pipes. Follow these steps for a leak-free install:
- Use an adjustable wrench to unscrew the sink supply lines from the old valve. Catch any remaining water in your bucket. Unscrew the old valve body from the supply pipe, then set it aside.
- Use a deburring tool to smooth the cut end of the exposed supply pipe, then wipe away any debris or old pipe dope with a clean rag. A clean, smooth pipe end is critical for a proper seal.
- Slide the compression nut and ferrule onto the supply pipe, with the tapered, beveled end of the ferrule facing the pipe end.
- Thread the new valve body onto the supply pipe hand-tight, then use the adjustable wrench to tighten the compression nut an additional 1/4 to 1/2 turn past hand-tight. Do not over-tighten, as this will strip the ferrule and ruin the seal.
- Wrap the male threads of the valve outlet with 2 to 3 wraps of PTFE (plumber’s) tape, then screw the sink supply line onto the outlet hand-tight. Give it an extra 1/4 turn with a wrench to secure it, but avoid over-tightening plastic threads.
- Turn your home’s main water supply back on slowly. Open the sink faucet to flush air from the lines, then wipe all connections with a dry paper towel to check for leaks.
Image source: Bing (Web (fair-use with source credit))
Aggregate DIY forum reports indicate over-tightening compression nuts is the #1 cause of post-installation leaks. If you see a slow drip at the connection, tighten the nut an additional 1/8 turn, or replace the ferrule if it’s damaged. For homes with older, corroded copper supply pipes, you may need to cut back to a clean, uncorroded section of pipe before installing the new valve to ensure a proper seal.
Step-by-Step Visual-Guided Installation: Push-to-Connect Shutoff Valves
Push-to-connect (permanent) shutoff valves are the fastest option for DIYers with no soldering or fitting experience. They work with copper, PEX, and CPVC supply pipes, and require no special tools for the pipe connection. Follow these steps for a secure install:
- Remove the old valve and prepare the supply pipe exactly as you would for a compression fitting installation: shut off water, drain lines, deburr the pipe end, and wipe away debris.
- Cut the supply pipe square with a pipe cutter for a clean, even end. An uneven cut will prevent the pipe from seating fully in the valve.
- Push the supply pipe firmly into the valve inlet until you feel and hear a distinct click. This indicates the pipe has seated fully against the O-ring seal and the locking clip is engaged.
- Gently pull on the pipe to confirm it is fully secured. It should not move at all if installed correctly.
- Connect the sink supply lines to the valve outlet as outlined in the compression fitting steps, using PTFE tape on threaded connections.
- Turn the main water supply back on slowly, then check all connections for leaks with a dry paper towel.
Manufacturer specifications for leading push-to-connect valve brands indicate a 25-year lifespan for potable water use when installed per instructions. These valves are ideal for renters who need a removable, code-compliant fix, or for tight spaces where soldering is not feasible. For non-conditioned spaces like garages or outdoor kitchens, verify the valve is rated for freeze-thaw cycles per outdoor kitchen framing guidelines.
Some local plumbing codes restrict push-to-connect fittings in concealed wall cavities, so check with your municipal plumbing authority if you have questions.
Key Visual Red Flags for Incorrect Installation
Most under-sink shutoff valve leaks come from easily avoidable visual errors. The image below shows the most common mistakes: cross-threaded connections, over-tightened compression nuts, and unseated push-to-connect fittings.
Image source: Web (Bing) / diy.stackexchange.com (Web image (fair-use with source credit))
Cross-threaded connections happen when you force a supply line or pipe fitting onto the valve threads at an angle. You’ll see the threads misaligned if you look closely, and the fitting will feel stiff when you turn it by hand. This causes slow leaks that drip down the supply pipe and into your cabinet.
Over-tightened compression nuts are another common issue. The ferrule inside the nut gets crushed if you tighten it more than 1/2 turn past hand-tight. A crushed ferrule won’t seal properly, leading to drips at the valve body.
Push-to-connect fittings that aren’t fully seated are hard to spot at first. If the pipe doesn’t sit flush with the valve’s internal stop, the O-ring won’t compress correctly. Gently pull on the pipe after installation to confirm it’s locked in place.
Using a non-lead-free valve violates EPA potable water standards and can leach lead into drinking water, especially in homes with older copper piping.
Post-Installation Leak Test and Final Visual Verification
A proper leak test takes 10 minutes and saves you from thousands in water damage later. Turn your home’s main water supply back on slowly, then open the sink faucet fully to flush air from the lines.
Wipe every connection (valve to supply pipe, valve to supply lines) with a dry paper towel. A wet spot means a leak. Slow leaks often take 10 to 15 minutes to appear, so recheck all connections after 30 minutes and again the next morning.
If you find a small drip at a compression fitting, tighten the nut an additional 1/8 turn. For push-to-connect leaks, turn off the water, remove the pipe, check for debris on the pipe end or O-ring, then reinsert firmly until you hear a click. Never ignore even a tiny drip, as it will worsen over time and cause cabinet rot or subfloor damage.
Typical Costs and Time Investment
DIY under-sink shutoff valve replacement is one of the most cost-effective home plumbing repairs you can do. The table below breaks down average costs and timeframes as of 2026.
| Item | DIY Cost | Pro Cost | Time Required |
|---|---|---|---|
| Quarter-turn shutoff valve (brass, lead-free) | $8–$25 | $15–$30 (parts markup) | 10–15 mins for install |
| Push-to-connect shutoff valve | $10–$30 | $20–$40 (parts markup) | 5–10 mins for install |
| Full professional installation (parts + labor) | N/A | $150–$300 | 30–45 mins on-site |
| Additional supply lines (if needed) | $5–$15 per line | $10–$25 per line | 5 mins per line |
Most first-time DIYers finish the entire job in 60 to 90 minutes, including prep and leak testing. This $25 DIY repair costs a fraction of the $300 average professional fee, and it’s a core part of any low-cost kitchen renovation.
When to Hire a Licensed Plumber (and Why It’s Worth the Cost)
There are several scenarios where hiring a licensed plumber is the safer, more cost-effective choice. If your existing supply pipe is corroded, cracked, or needs to be cut back to a clean section, a pro has the tools and experience to do that without damaging surrounding pipes.
Many local landlord-tenant laws require licensed plumbers to perform permanent plumbing modifications in rental properties. Doing the work yourself could violate your lease or local codes, leading to fines or loss of your security deposit.
If you can’t locate your home’s main water shutoff, or if the under-sink cabinet clearance is less than 12 inches, a pro can complete the job quickly without risk of flooding. For homeowners tackling a full kitchen remodel, bundling shutoff valve replacement with other plumbing work reduces overall labor costs and ensures all work meets local code requirements.
Frequently Asked Questions About Under-Sink Shutoff Valve Installation
How long does it take to install an under-sink shutoff valve?
30 to 60 minutes for experienced DIYers, 60 to 90 minutes for first-timers. Most of that time is prep, like shutting off water and draining lines. The actual valve installation takes 10 to 15 minutes once the old valve is removed.
Can I install a shutoff valve without shutting off the main water supply?
No. Even if the old valve is broken, residual downstream pressure will cause water to spray out when you disconnect fittings. Shutting off the main supply and opening the faucet to drain lines eliminates that risk and prevents flooding.
What size shutoff valve do I need for my kitchen sink?
Standard residential kitchen shutoff valves have a 1/2 inch nominal inlet for the supply pipe and a 3/8 inch nominal outlet for the sink supply line. Angle stop valves, with a 90-degree outlet, fit most standard under-sink cabinet layouts.
Do I need a lead-free shutoff valve?
Yes. All potable water shutoff valves sold in the US after 2014 must meet NSF/ANSI 61 lead-free standards enforced by the EPA. Using a non-compliant valve can contaminate drinking water and violate local plumbing codes.
How do I know if my new shutoff valve is leaking?
After installation, turn the main water back on slowly and wipe all connections with a dry paper towel. A wet spot indicates a leak. Slow leaks often take 10 to 15 minutes to appear, so recheck connections after 30 minutes and again the next day.
